General Characteristics

Self-supporting tank barrel constructed from aluminium alloy AL Mg 4.5 including dished and flanged front and rear conical ends. 36 & 40 cubic metre model have 2off integral discharge hoppers angled to give 43 degrees minimum angle of repose. Rain gulleys both sides and front of tank and open at rear. Underconstruction consisting of mounting subframe for suspension and integral alloy upper coupler. Working Pressure: 2 bars (28psi) maximum. Test Pressure; 3 bars (42 psi) hydraulic. Unique oval cones ensures cleanest smoothest and quickest discharge

Standard Equipment

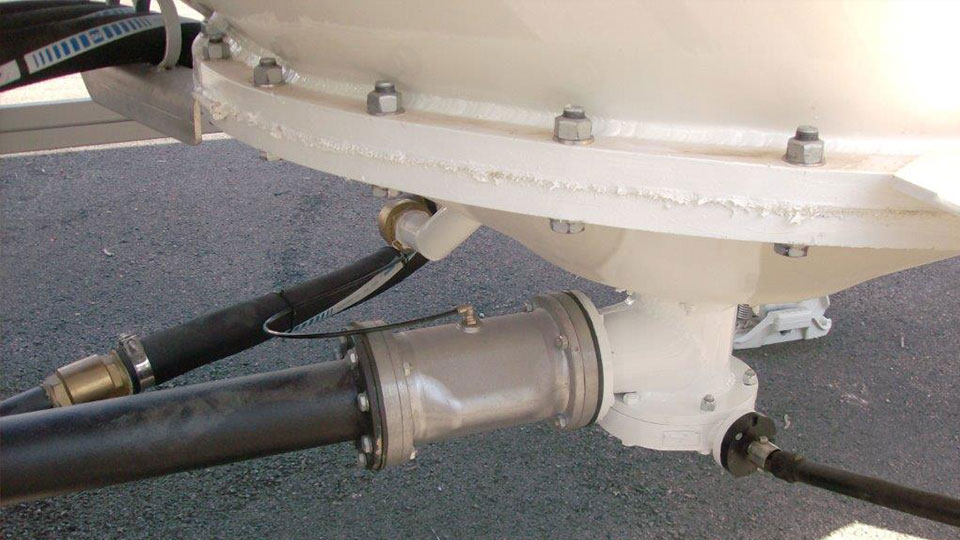

450mm dia. aluminium 4 point fixing manlids complete with swivel facility, safety bolt and suitable vent valves Stainless steel ladder leading to 450mm wide aluminium alloy grating walkway running full length of tank with collapsible handrail elevated by activating on walkway. Two off 4000mm long 200mm dia. Stainless steel hose tubes complete with hinged and lockable door both ends 76mm i/d stainless steel air supply pipework throughout 100mm bore carbon steel discharge pipework running from front plenum to finish at rear in 100 mm Stortz/Unicone coupling. 200mm bottom clean-out valves fitted.

Running Gear

Your choice of makes and models of axles and suspension is available from the best Europe has to offer. Drums or discs. Alloy wheels and premium tyres Individual self-colour plastic wings c/w spray suppression to CE directive 91/226. Two speed JOST MODUL with captive handle and compensating feet. Bolt-on 51 - 73mm king-pin All electrics to IP67 and to fully comply with CE76/756 Rear and Side protection to fully comply with CE directive 89/278 Stainless tool box supplied and fitted and large rear door to rear void (incorporating pressure load tubes when specified)

Painting & Livery

To the highest standards in our own approved paintshops is standard. Just tell us what you need.

Painting and Livery

Interior – Left Natural aluminium Exterior – Painted in your livery

After Sales

Our network is set up, ready and waiting to look after any issue whether it be tank or trailer


Self contained engine arrangement.
